How To Replace Brake Pressure Switch On Polaris Ranger



The brake pressure switch is a critical component of the braking system in a Polaris Ranger, responsible for activating the brake lights when pressure is applied to the brake pedal. Over time, this switch may wear out or become faulty, resulting in issues such as non-functional brake lights or inconsistent brake operation. In such cases, it becomes necessary to replace the brake pressure switch to ensure the safety and proper functioning of the vehicle’s braking system.


While the task may seem daunting for some, with the right tools and knowledge, replacing the brake pressure switch on a Polaris Ranger can be a straightforward and manageable process. In this guide, we will discuss the step-by-step procedure for replacing the brake pressure switch on a Polaris Ranger, highlighting key considerations and providing helpful tips along the way. By following these instructions carefully, Polaris Ranger owners can restore their vehicle’s braking system to optimal condition and ensure safe and reliable operation on the road or off-road.

How To Replace Brake Pressure Switch On Polaris Ranger

What is the purpose of a brake pressure switch?

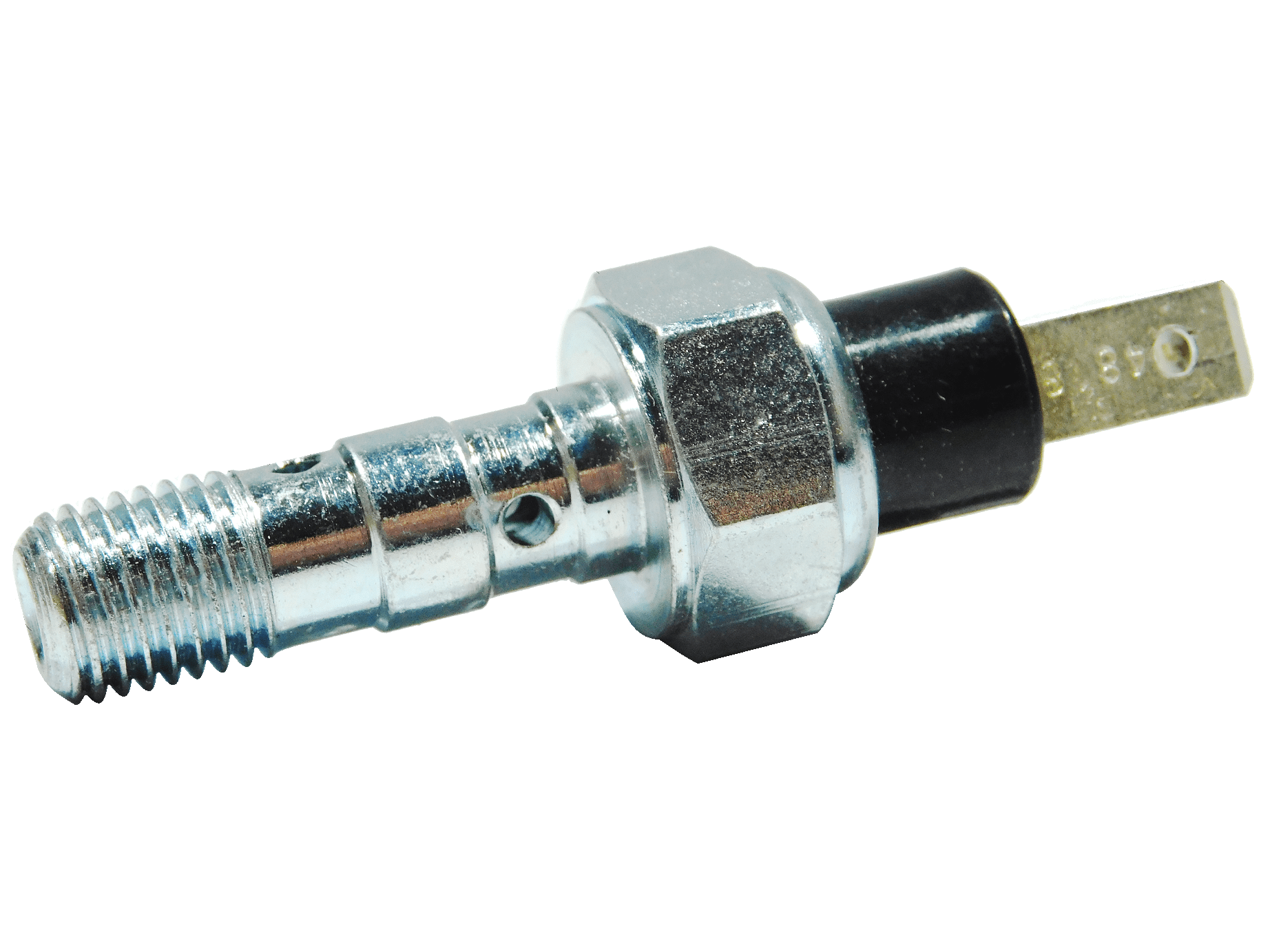

This is a pressure operated safety switch intended to interrupt power to the ignition system in the event of a sudden spike in brake pressure. Switch is plumbed in the front or rear brake circuit depending on vehicle type. 1. Determine if switch will be plumbed in the front or rear brake system circuit. A brake pressure switch, also known as a brake light switch, plays a crucial role in the operation of a vehicle’s braking system.


Its primary function is to activate the brake lights when the brake pedal is pressed, thereby alerting other drivers that the vehicle is slowing down or coming to a stop. When the brake pedal is depressed, it pushes against the brake pressure switch, causing it to close and complete the electrical circuit that powers the brake lights. This action illuminates the brake lights, signaling to drivers behind the vehicle that the brakes are being applied.


In addition to activating the brake lights, the brake pressure switch may also serve other functions within the vehicle’s braking system, such as disabling cruise control or triggering the transmission shift interlock to prevent shifting out of park when the brakes are applied. Overall, the brake pressure switch is a critical component that helps ensure the safety of both the driver and other road users by providing clear and timely indications of braking actions.

Where is the brake switch located?

You can see your brake light switch by looking under the dash, near the top of the brake pedal. The brake light switch is usually attached to a small bracket that holds the switch, activated when the pedal is depressed, in position.


The exact location of the brake pressure switch can vary depending on the make and model of the vehicle. However, in most cases, the brake switch is mounted near the brake pedal assembly, typically on or near the brake pedal arm or bracket. Its proximity to the brake pedal allows it to be actuated easily when the brake pedal is depressed.


To locate the brake pressure switch, one can start by tracing the brake pedal upward from the floorboard until reaching the point where the pedal arm meets the brake pedal bracket or assembly. The brake switch is often attached to this bracket or assembly and may be secured with bolts or clips. It is usually easily accessible for inspection, adjustment, or replacement if necessary.

Why is there no power to my brake pressure switch?

If, as you say, you have no power to the brake light switch under the dash, then that means either the fuse is blown and will need to be replaced, or the wiring to or from the fuse has an open in it somewhere. Several potential reasons could explain why there is no power reaching the brake pressure switch in a vehicle. One common issue is a faulty fuse or relay in the vehicle’s electrical system. If the fuse or relay responsible for supplying power to the brake lights is blown or malfunctioning, it can interrupt the electrical circuit and prevent power from reaching the brake pressure switch.


Another possible cause could be a wiring issue, such as a damaged or disconnected wire in the brake light circuit. Over time, wires can become frayed, corroded, or damaged due to exposure to the elements, heat, or physical wear and tear. A break or short in the wiring can disrupt the flow of electricity to the brake pressure switch, resulting in a loss of power.


Additionally, the brake pressure switch itself may be faulty or worn out, preventing it from effectively completing the electrical circuit when the brake pedal is depressed. In such cases, the switch may need to be tested and replaced if found to be defective.

How do you manually test a pressure switch?

Using a multimeter, set it to test for continuity (the symbol often looks like a sound wave). Place the multimeter probes on the two screw terminals of the pressure switch.


You should read “no continuity” or “open circuit” when the switch is off. Testing a pressure switch manually typically involves using a multimeter or a continuity tester to check for continuity or electrical resistance across the switch terminals. Before testing, it’s essential to disconnect the electrical connector from the pressure switch to prevent any accidental electrical shocks.


To test for continuity, set the multimeter to the continuity or resistance setting and touch the probes to the terminals on the pressure switch. With the brake pedal released, there should be no continuity or infinite resistance, indicating an open circuit. Then, depress the brake pedal to actuate the switch and observe the multimeter reading. There should be continuity or low resistance, indicating a closed circuit.

How do I know if my brake switch is bad?

  • The cruise control won’t set or it cancels unexpectedly.

  • Brake lights flickering or activating intermittently.

  • The shift interlock won’t disengage, and you can’t move the gearshift lever normally or it might be stuck in park.

  • An ABS light illuminated.


One of the most common signs of a faulty brake switch is when the brake lights fail to illuminate when the brake pedal is depressed. If you notice that your brake lights are not working properly, it is essential to inspect the brake switch for any signs of damage or malfunction. Additionally, if you experience issues with the cruise control system or notice that the vehicle is having difficulty shifting out of park, it could indicate a problem with the brake switch.


Another potential indicator of a faulty brake switch is if the vehicle’s engine stalls when the brake pedal is pressed. In some cases, a diagnostic scan tool may be used to identify any fault codes related to the brake switch. If you suspect that your brake switch is bad, it is recommended to have it inspected and replaced by a qualified mechanic to ensure proper functionality and safety.

How To Replace Brake Pressure Switch On Polaris Ranger

Where is the brake pressure sensor located?

In modern vehicles the brake pressure sensor is normally located within the ABS pump and cannot be replaced separately from the ABS pump. The location of the brake pressure sensor can vary depending on the make and model of the vehicle. In most vehicles, the brake pressure sensor is located within the hydraulic brake system, typically near the master cylinder or brake booster.


The master cylinder is a key component of the braking system that converts the force applied to the brake pedal into hydraulic pressure, which is then transmitted to the brake calipers or wheel cylinders to engage the brakes. The brake pressure sensor is responsible for monitoring the hydraulic pressure within the brake system and transmitting this information to the vehicle’s onboard computer system.


This data is used to determine the appropriate brake force distribution and to activate various safety features, such as the anti-lock braking system (ABS) and electronic stability control (ESC). If you suspect a problem with the brake pressure sensor, it is recommended to have it inspected and replaced by a qualified mechanic to ensure proper braking performance and safety.

How does a pressure switch work?

Positive low pressure switches work by converting a positive pressure signal into electrical output in response to changes in positive pressure. Conversely, negative low pressure switches convert negative pressure signals into electrical output when there is a change in negative pressure.


A pressure switch is a type of sensor that is commonly used in various automotive, industrial, and household applications to monitor and control fluid or gas pressure. Pressure switches typically consist of a diaphragm or piston that is sensitive to changes in pressure, a spring mechanism, and electrical contacts. When the pressure within the system exceeds or falls below a certain threshold, it causes the diaphragm or piston to move, thereby activating or deactivating the electrical contacts.


This change in contact status can be used to trigger alarms, activate pumps or motors, or control other devices based on the pressure level detected. Pressure switches are commonly used in applications such as water pumps, air compressors, hydraulic systems, and HVAC systems. They play a crucial role in ensuring the safe and efficient operation of these systems by monitoring pressure levels and initiating appropriate responses as needed.

Can I replace my own brake switch?

Can I replace a brake light switch myself? Yes, in most cases, a brake light switch can be replaced by a DIYer with some common tools. Replacing a brake switch is a task that can be performed by individuals with some level of mechanical aptitude and experience working on vehicles.


However, it’s important to note that working on the brake system of a car is a critical safety component, and any mistakes or improper installation could lead to serious accidents or injuries. As such, it’s essential to approach this task with caution and ensure that you have the necessary tools, knowledge, and skill to complete the job correctly.


Before attempting to replace the brake switch, it’s crucial to consult the vehicle’s service manual or seek guidance from a qualified mechanic. This will help you understand the specific steps involved in the replacement process and any precautions or safety measures that need to be taken. Additionally, it’s important to have the right replacement part for your vehicle, as brake switches can vary depending on the make and model of the car.

How To Replace Brake Pressure Switch On Polaris Ranger


Replacing the brake pressure switch on a Polaris Ranger is a task that can be accomplished with relative ease by following a systematic approach and adhering to proper safety precautions. By referring to the step-by-step procedure outlined in this guide and consulting the vehicle’s manual for specific instructions, Polaris Ranger owners can successfully replace the faulty brake pressure switch and restore the functionality of their vehicle’s braking system.


As with any maintenance or repair task, it is essential to exercise caution, use the appropriate tools, and seek professional assistance if needed. With the brake pressure switch replaced, Polaris Ranger owners can enjoy peace of mind knowing that their vehicle is equipped with a reliable and responsive braking system, ensuring safety and control in various driving conditions.
